PC-free Projection

The projector’s USB reader support allows users to run photo images such as JPG and BMP, as well as office documents including PDF, Word, PowerPoint, and excel files, directly from a thumb drive for a PC-less projection solution.

Operation has been verified for the following applications.
- Adobe PDF: 1.0/1.1/1.2/1.3/1.4 - Microsoft Word: British Word 95, Word 97/2000/2002/2003/2007(.docx)/2010(.docx)
- Microsoft Excel: British Excel 5/95, Excel 97/2000/2002/2003/2007(.xlsx)/2010(.xlsx)/Office XP Excel
- Microsoft PowerPoint: British PowerPoint97, PowerPoint 2000/2002/2003/2007(.pptx)/2010(.pptx)/Office XP PowerPoint, PowerPoint presentation 2003 and earlier(.pps)/2007 and 2010(.ppsx)

Wireless Presentation

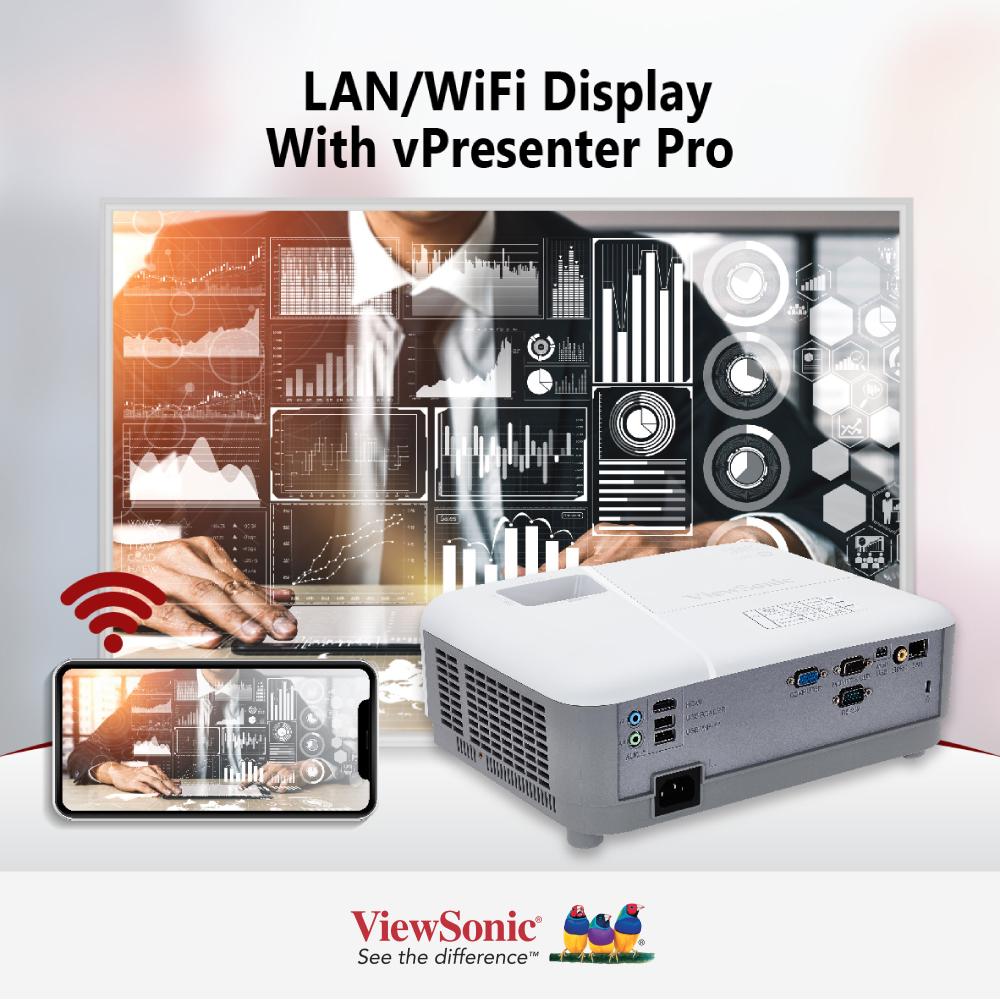

PG603W supports display over LAN/W-Fi with vPresenter Pro app, which enables wireless content sharing from laptops and other smart devices and allows you to connect up to 4 different content sources simultaneously shown on a quad split screen.

Minimum system requirements for vPresenter Pro
- Mac OS 10.10-10.11
- iOS 9-10
- Windows 7-10
- Android 5.0 above

Mobile Screen Mirroring

Content from smart devices can be mirrored instantly via USB cable connection for delivering presentations directly from your own device.

Centralized Management

PG603W is Creston, AMX, PJ Link, and Extron compatible for easy-to-use network management that allows administrators to remotely observe and control up to 256 projectors at one time through a LAN IP. An advanced real-time alert system sends status updates about power, lamp life, and unit location for efficient monitoring.

Instant Activation

Get your projector up and running instantly with two simple settings:
Direct Power On: Simply connect the power cord and begin; the projector will power itself on automatically.
Signal Power On: The projector will power on automatically upon detection of a VGA or HDMI cable connection.

Easy Image Correction

Horizontal and Vertical Keystone correction and 4 corner adjustment features eliminate crooked and distorted images for a perfectly proportioned picture every time.

8 Control Codes from a Single Remote

This projector remote control can be assigned to 8 different remote control codes for effortless projector selection, configuration and operation during lessons or meeting. The remote can also be used to control specific projectors individually by adjusting the remote’s control code.

Bright Images in Any Environment

Packed with 3,800 ANSI Lumens of brightness and a 22,000:1 high contrast ratio, PG603W is equipped to produce bright images in any environment, including rooms with high ambient light.

Immersive 3D Viewing

PG603W is capable of projecting 3D content directly from 3D Blu-ray players and HDMI-enabled devices such as laptops, tablets, and media players via HDMI connection.

Optimized Audio

SonicMode uses an embedded DSP chip to optimize sound performance for 3 different usage scenarios.
Standard Mode: A preset mode that offers the best sound levels for general use.
Speech Mode: A preset mode that enhances the sound of spoken words, making it ideal for projecting speeches and lectures.
Entertainment Mode: a preset mode that is fine-tuned with more bass and richer mid-high frequencies; ideal for music and movies.

Extended Lifespan

When the Power Saving setting is turned on and no signal input is detected, the projector will automatically switch into Eco Mode and SuperEco Mode.
Eco Mode: The projector will automatically switch from Normal to Eco Mode whenever it has been left idle for 5 minutes.
SuperEco Mode: When the projector has not received an input signal for 20 minutes, projected images are dimmed to 30%, extending the lamp’s lifespan to 15,000 hours on average.

Automatic Sleep Timer

PG603W’s Sleep Timer function allows you to select a period of inactivity that will determine when the projector should put itself into sleep mode automatically.

Reduced Energy Consumption

When no signal has been detected, the projector will automatically power off to conserve energy and lamp life.

Exterior & Rear I/O Connectors

• 01. Keypad
• 02. LED indicator
• 03. Lamp Cover
• 04. Zoom/Focus
• 05. Projection Lens
• 06. Front IR

• 07. Audio in/out
• 08. HDMI
• 09. Computer In
• 10. Monitor Out
• 11. Mini USB for Service
• 12. Video

• 13. LAN
• 14. USB Reader/USB WIFI
• 15. RS232
• 16. Kensington lock

Native Resolution

1280x800

DC type

DC3

BRIGHTNESS (LUMENS)

3800 ANSI Lumens

Contrast Ratio with SuperEco mode

22000:1

Display Color

1.07 Billion Colors

Light Source

Lamp

Light source life (Nor/SuperEco)

5000/15000

Lamp Watt

200W

Lens

F=2.56-2.68, f=22-24.1 mm

Projection Offset

100%+/-5%

Throw Ratio

1.55-1.70

Image size

30" - 300"

Throw Distance

1m-10.98m(100" @3.34m)

Keystone

H:+/-20° , V:+/-30°

Optical Zoom

1.1x

Audible Noise (Eco)

27dB

Resolution Support

VGA(640 x 480) to FullHD(1920 x 1080)

HDTV Compatibility

480i, 480p, 576i, 576p, 720p, 1080i, 1080p

Video Compatibility

NTSC, PAL, SECAM

Horizontal Frequency

15K~102KHz

Vertical Scan Rate

23~120Hz

Computer in (share with component)

1

Composite

1

Audio-in (3.5mm)

1

HDMI/HDCP

1 (Back) (HDMI 1.4/ HDCP 1.4)

Monitor out

1

Audio out (3.5mm)

1

Speaker

10W

USB type A (Power)

2 (1 x reader 5V/0.5A & 1 x optional wifi dongle)

RS232

1

RJ45

1

USB type mini B (Services)

1

Power Supply Voltage

100-240V+/- 10%, 50/60Hz AC

Power Consumption

Normal: 270W Standby: <0.5W

Operating Temperature

0~40℃

Power Cord

1

VGA cable

1

Remote Control

1 (w/Laser pointer)

QSG & CD

QSG: 1 / CD: NA

Net (kg)

2.3kg

Physical (MM)

294x218x110mm

Lamp/Light Source

RLC-109

Air Filter

RSPL

Carry Bag

PJ-CASE-008

Language

English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese

Warranty

3 Years Warranty
