Overview

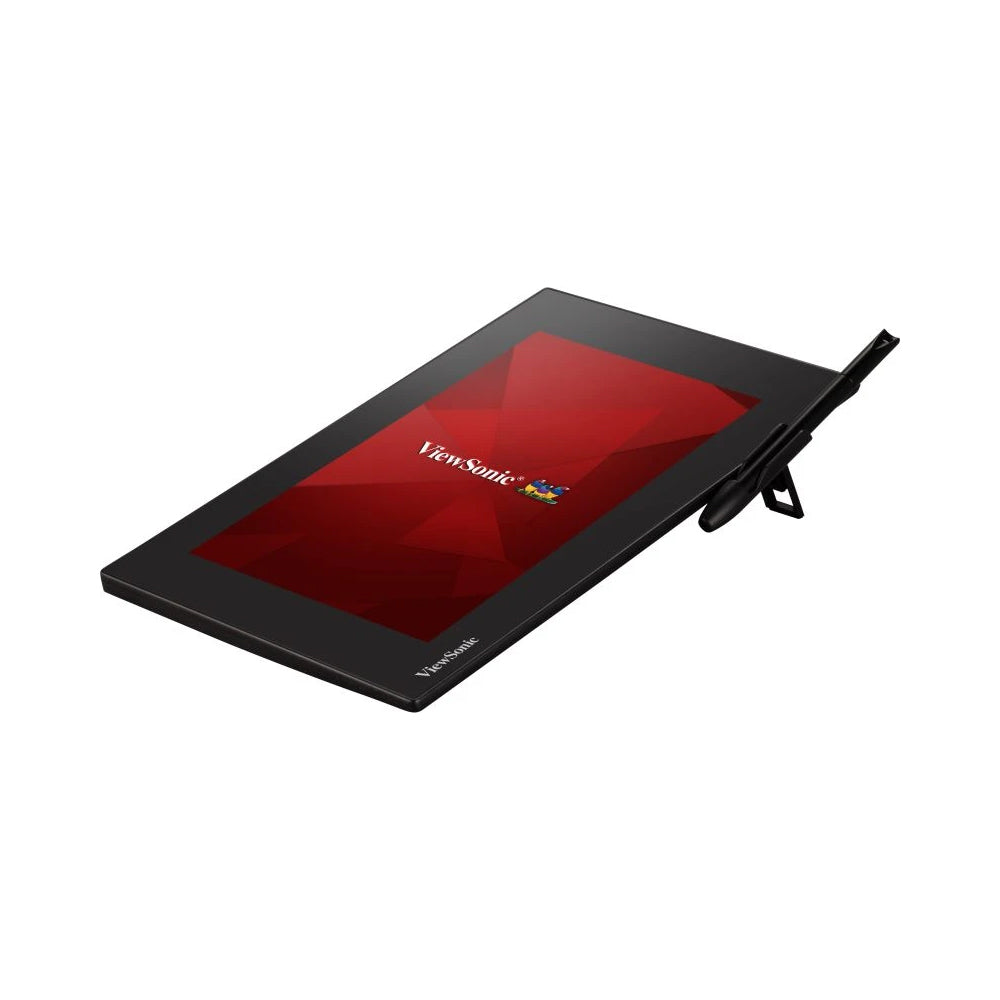

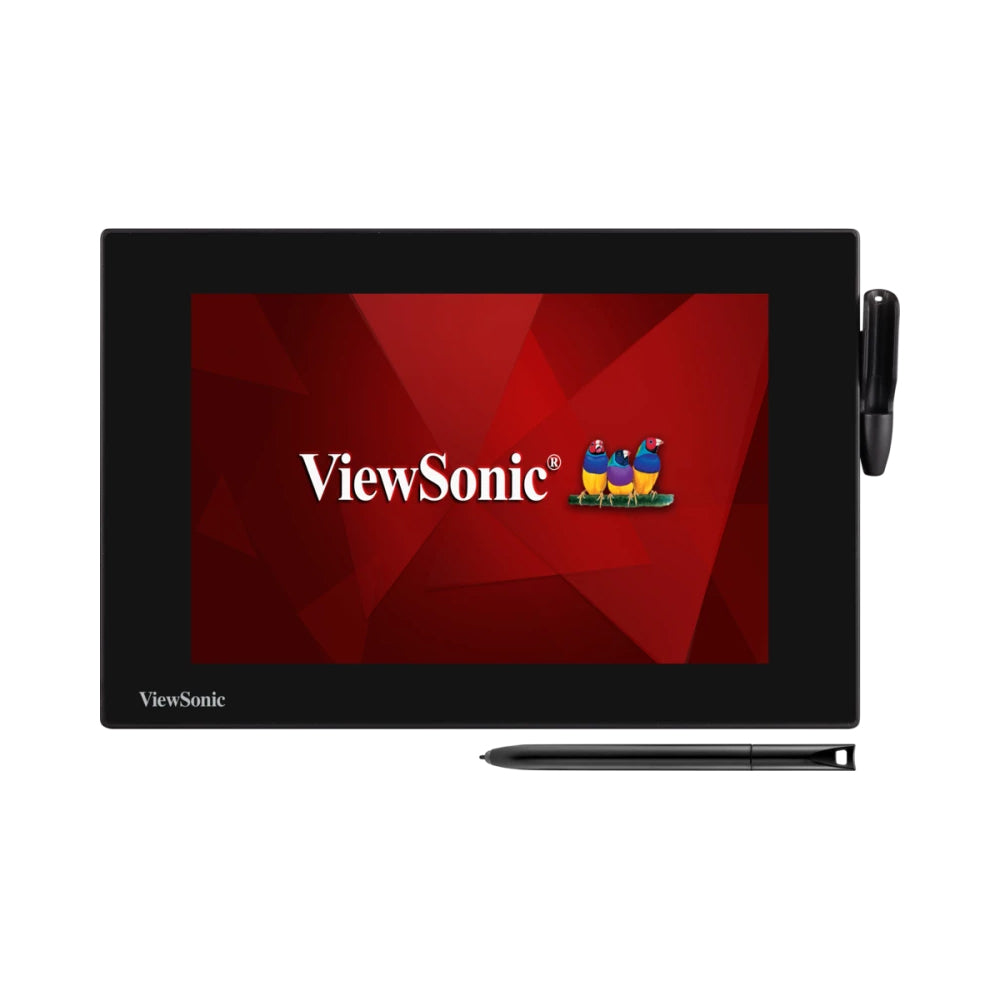

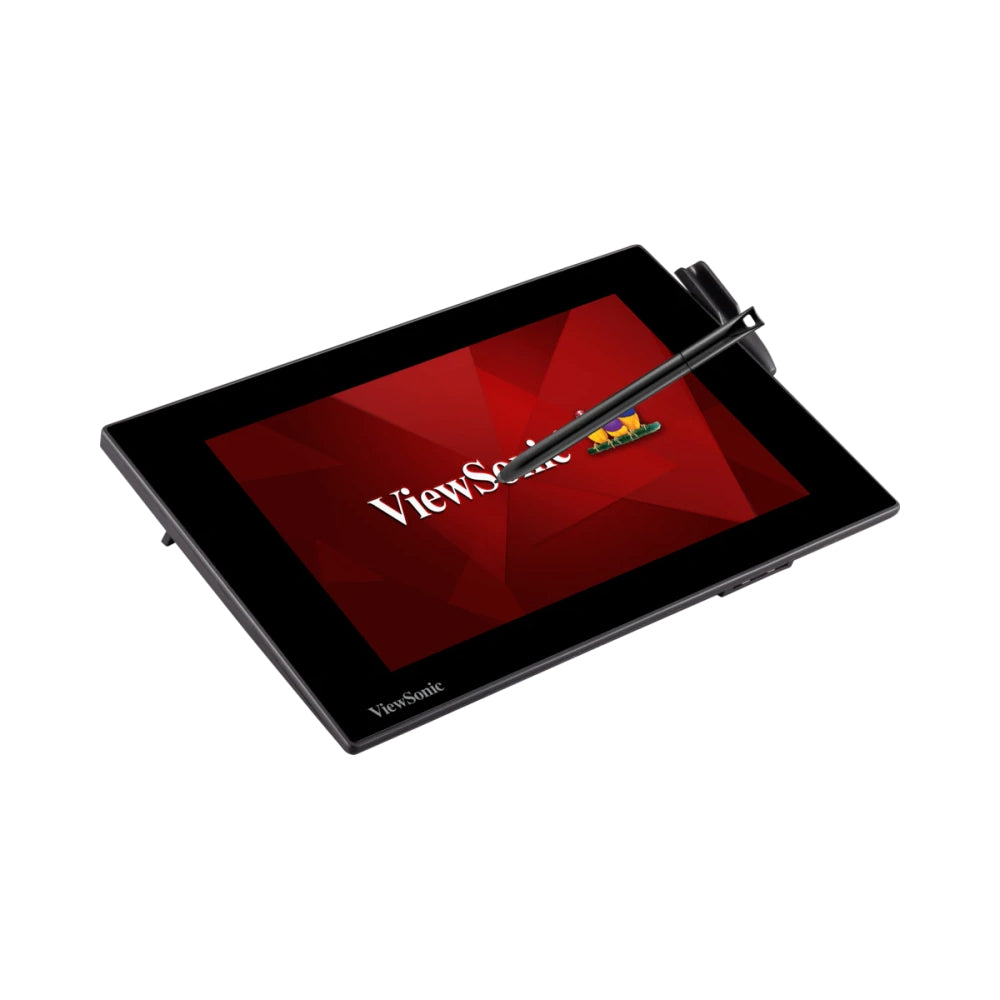

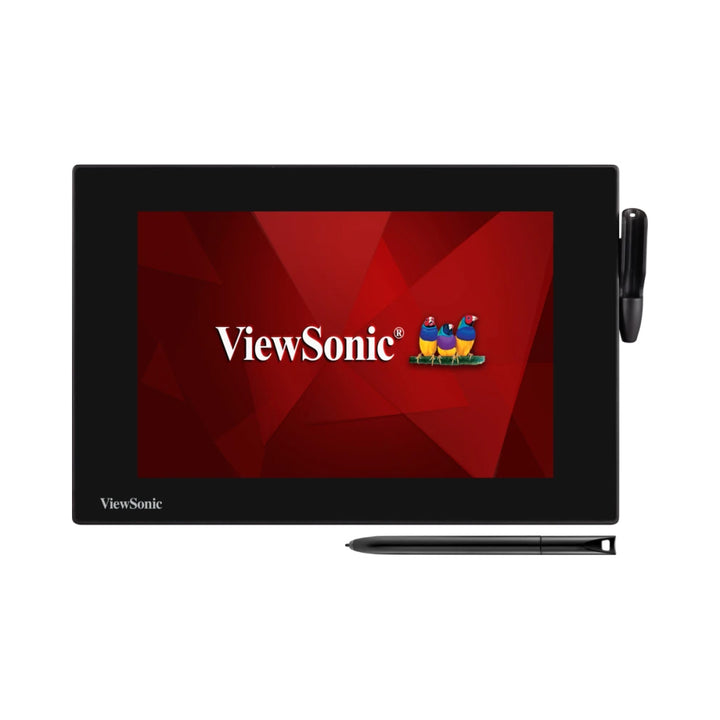

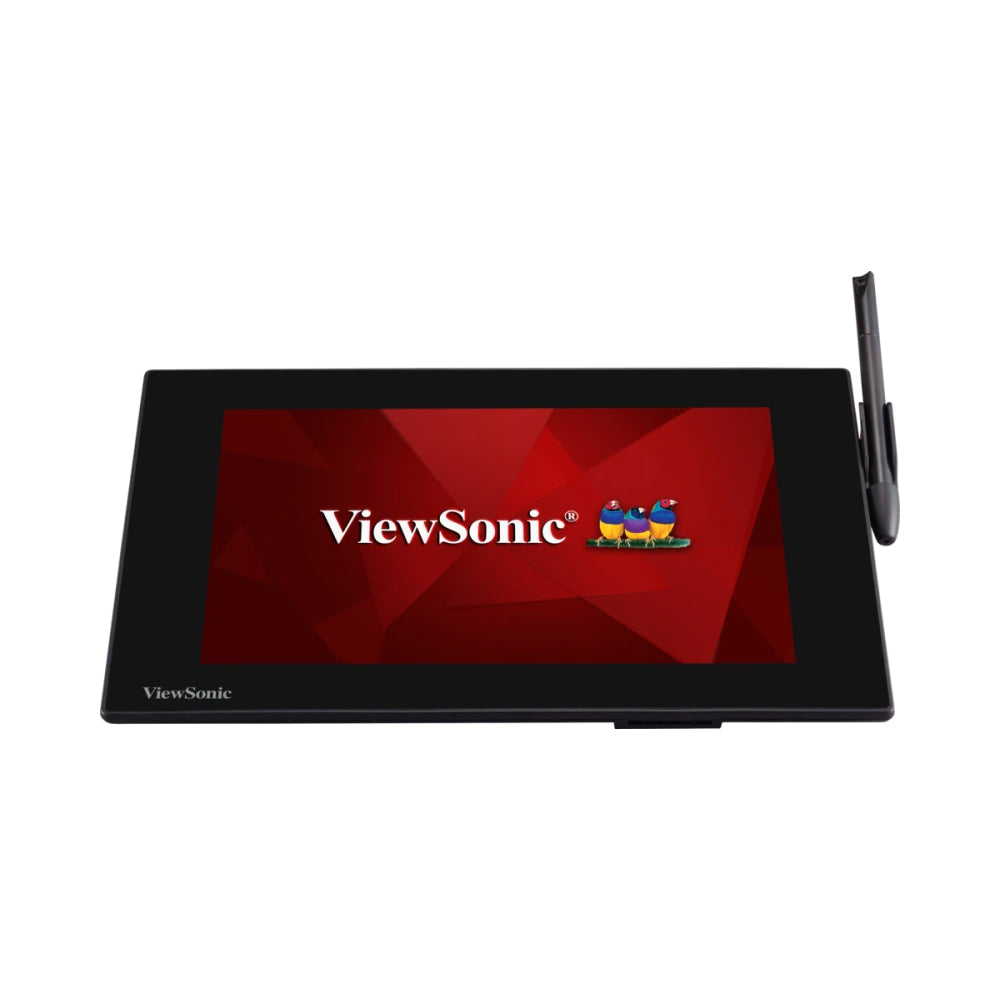

ViewSonic PD1013 is an ideal solution for optimizing user experience with streamlined service via Kiosk solution. 10.1- inch LCD pen display offers intuitive writing, annotating, and signage capabilities for organizations that need to let customers use in portrait and landscape mode, making it easier for the user to view and signed documents. It’s an ideal e-Signature solution for corporate, banking, finance, hospitality, insurance, and healthcare.
A verified 99.9% antimicrobial solution
A verified 99.9 % antibacterial solution have been tested by SGS. Antibacterial technology implemented across all aspects of our product line including the pen, housing. *Option by request
A superior and intuitive handwriting experience
ViewSonic pen display delivers intuitive and accurate handwriting with 2048 levels of pen pressure sensitivity. The 250 pps response rate produces written text and highlighting on the screen without delays.
Ergonomic design for comfortable working

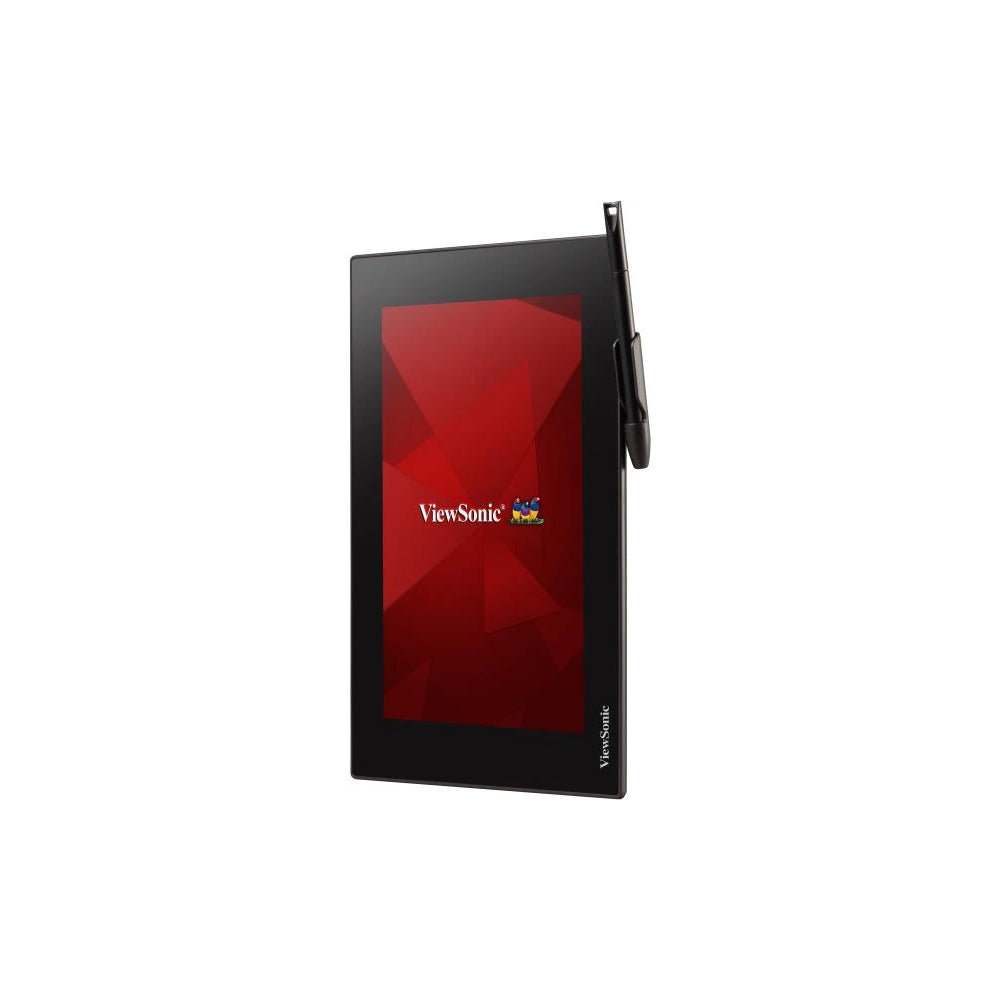

PD1013 can be displayed in portrait and landscape mode, making it easier for the user to view and signed documents.
Outstanding durability surface
Constructed with an edge-to-edge 8H protective glass faceplate, the ViewSonic pen display is anti-scratch, anti-glare, and anti-fingerprint coating, delivering a durable and reliable user touch experience for e-signature solution in public usages.
Secured Encryption
Each signature signed on the pen display undergoes a hardware and software based encryption. All data is protected according to RSA2048 & AES256,the highest industry standards. *Option by request
Support for virtualized environment
ViewSonic pen display offers several options for virtualized, remote desktop, Citrix, VMWare, and RDS and thin client / zero client environments.
LCD PANEL
Display Area
216.96 x 135.6 mm (10.1" TFT LCD)
Optimum Resolution
1280 x 800 pixels
Brightness
200 cd/m2
Contrast Ratio
800:1
Backlight
LED Light-Bar
Viewing Angles
H:170° (85°/ 85°) V:170° (85°/ 85°)
Panel Surface
Anti-glare, Hard coating (8H)
CONNECTOR
USB
Micro USB 2.0 x 1
TOUCH
Accuracy
+/- 0.5mm(center)

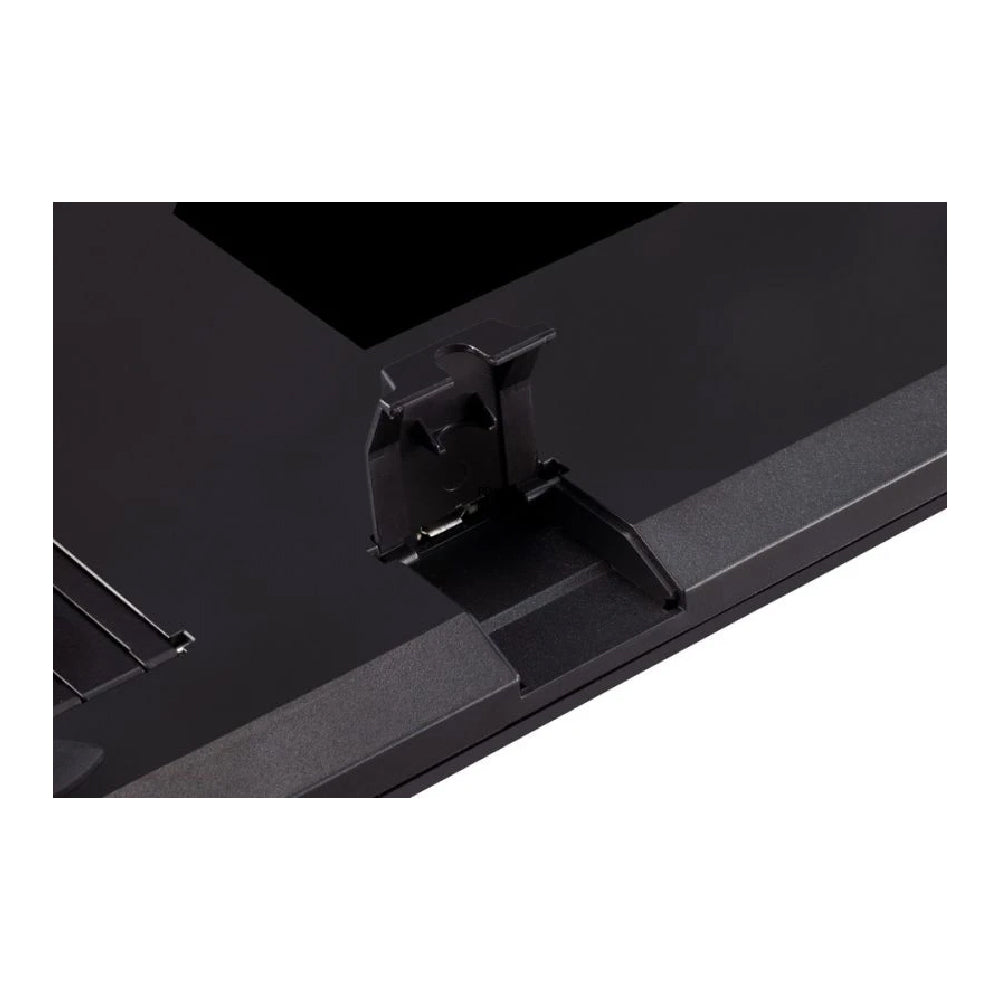

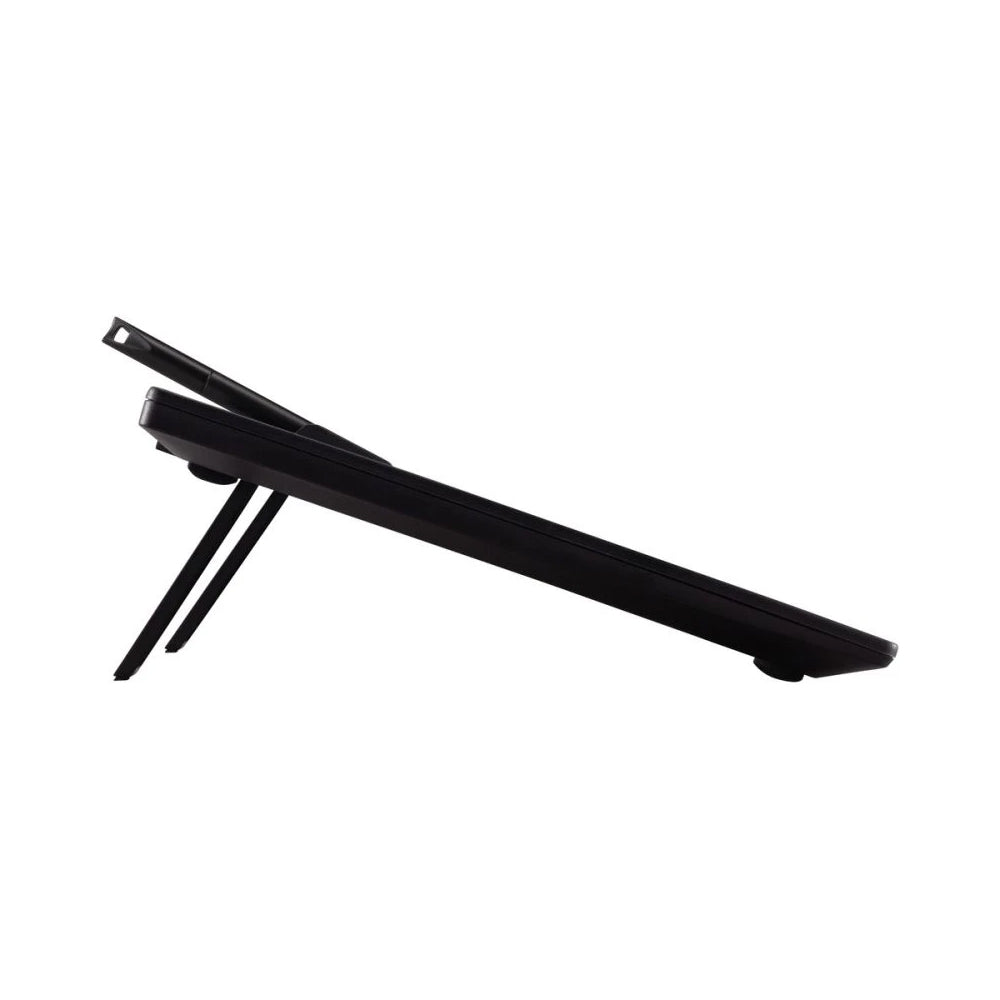

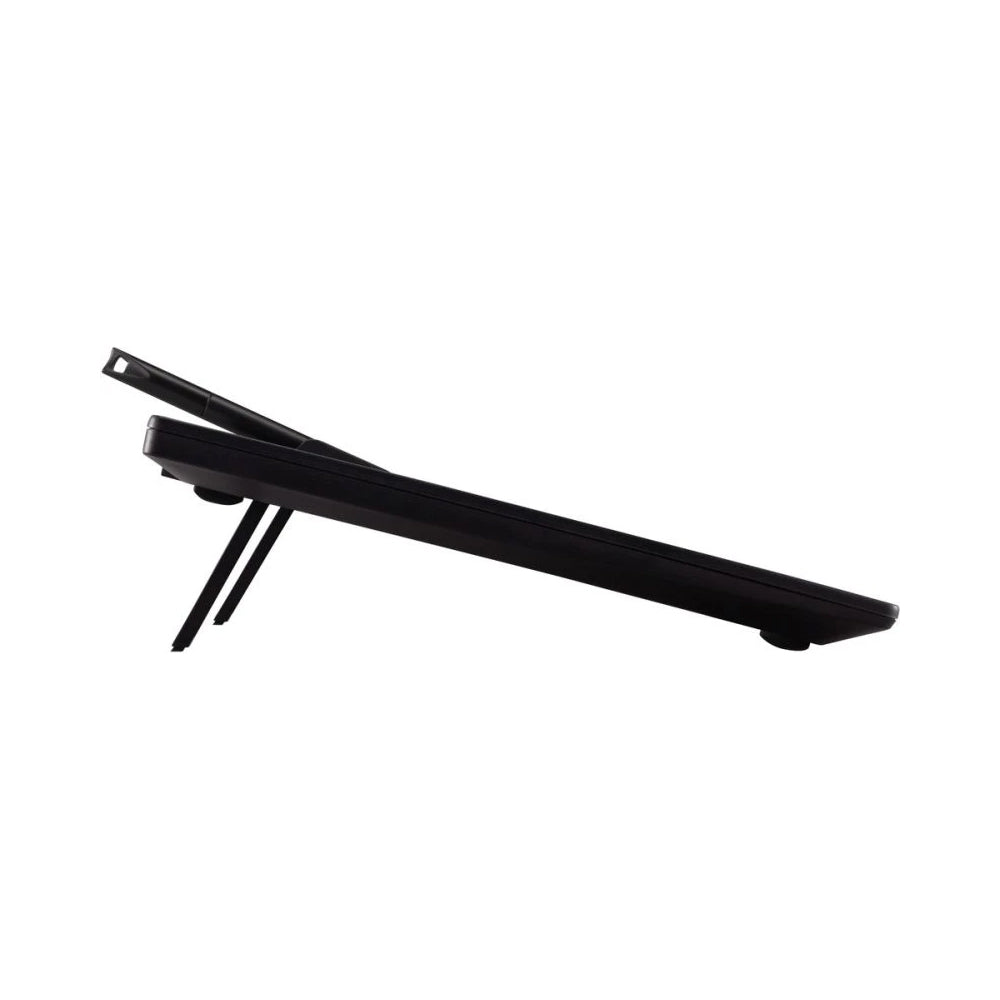

ERGONOMICS
Tilt (Portrait)
0/ 15°/ 20°
Tilt (Landscape)
0/ 9°/ 13°
COMPATIBILITY
PC
Windows 10, 11, and later (Win 7, Linux Ubuntu, Chrome OS by request)
POWER
Voltage
USB 5V
Consumption
4.55W (Typ.) / 5.06W (Max.)
OPERATING CONDITIONS
Temperature (º F / º C)
0℃ to 50℃
Humidity
20%-80%(Max), Non-condensation
DIMENSIONS
Physical (in / mm)
287.0 x 185.6 x 14.3 mm
Box (in / mm)
350.0 x 273.0 x 76.0 mm
WEIGHT
Net (lb / kg)
0.66 kg
Gross (lb / kg)
1.09 kg
General
Package Contents
1. PD1013 Pen display x 1
2. USB 2.0 2-in-1 Y-cable (Micro USB to Type A x 2) x 1

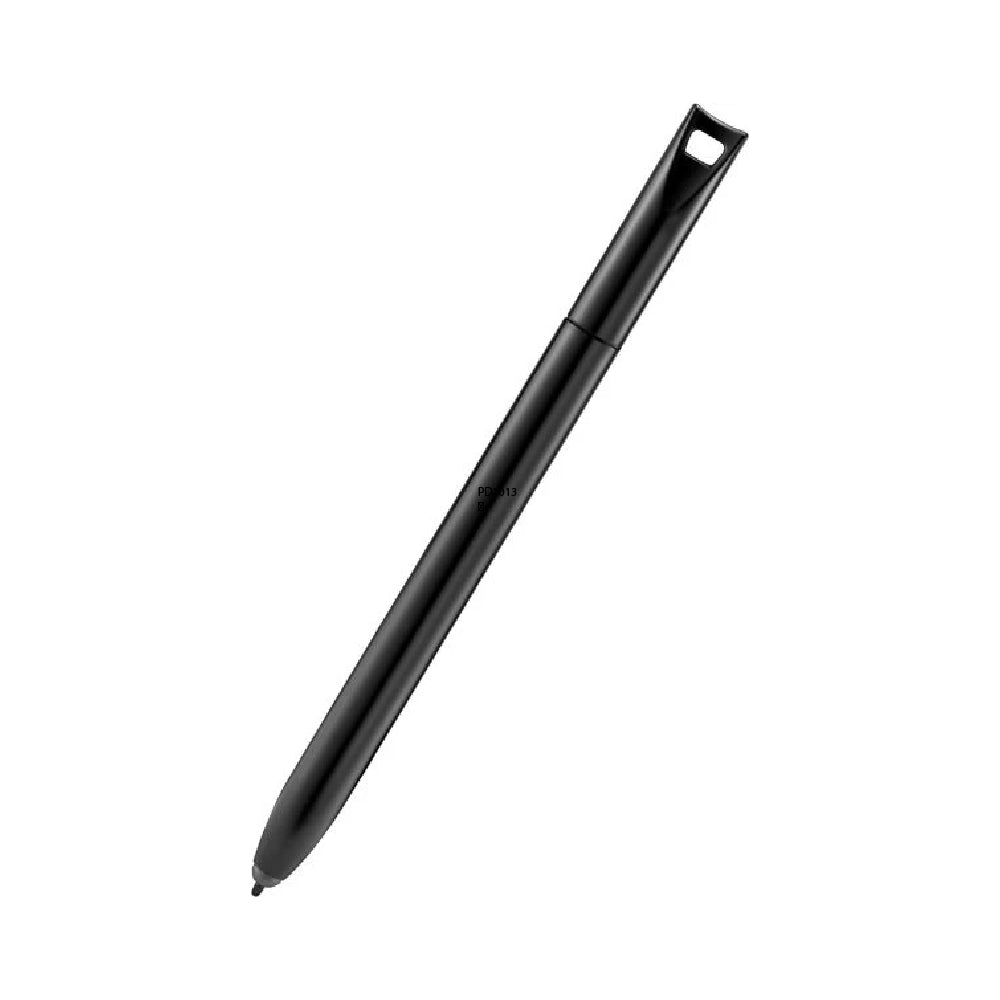

3. EMP-001 Pen x 1
4. Pen nib x 3
5. Pen tether x 1
6. Nib removal tool x 1
7. Screwdriver x 1
8. AC/DC Power adapter 5V/2A x 1
9. Quick start guide x 1
Regulation
CE/ FCC/ BSMI
Warranty
3 Years
