OVERVIEW

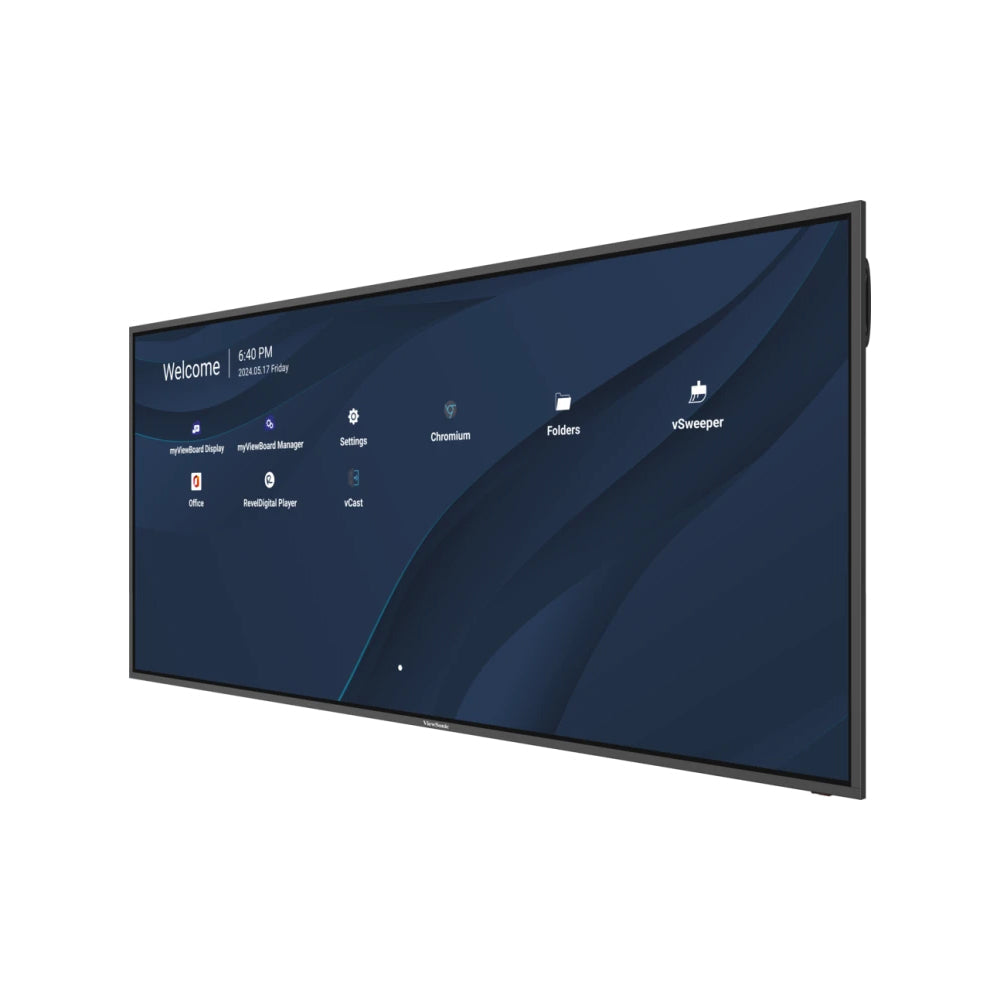

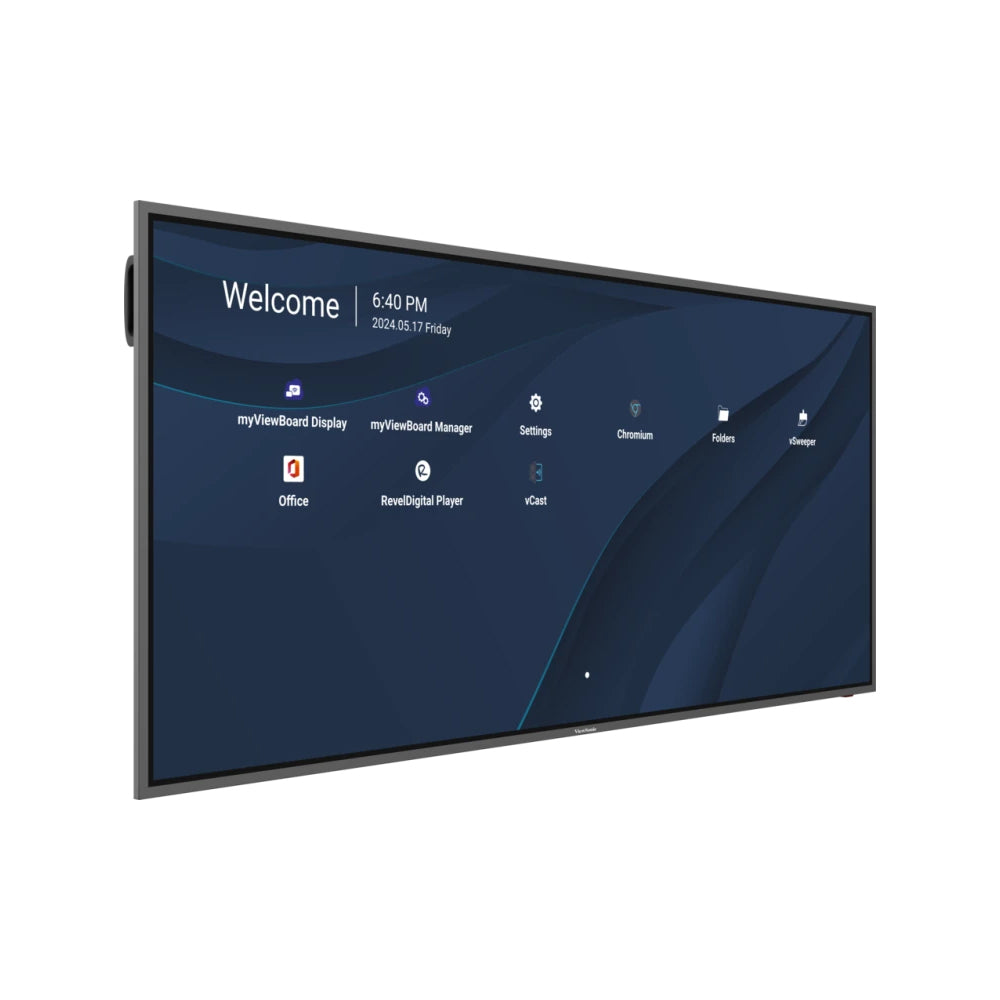

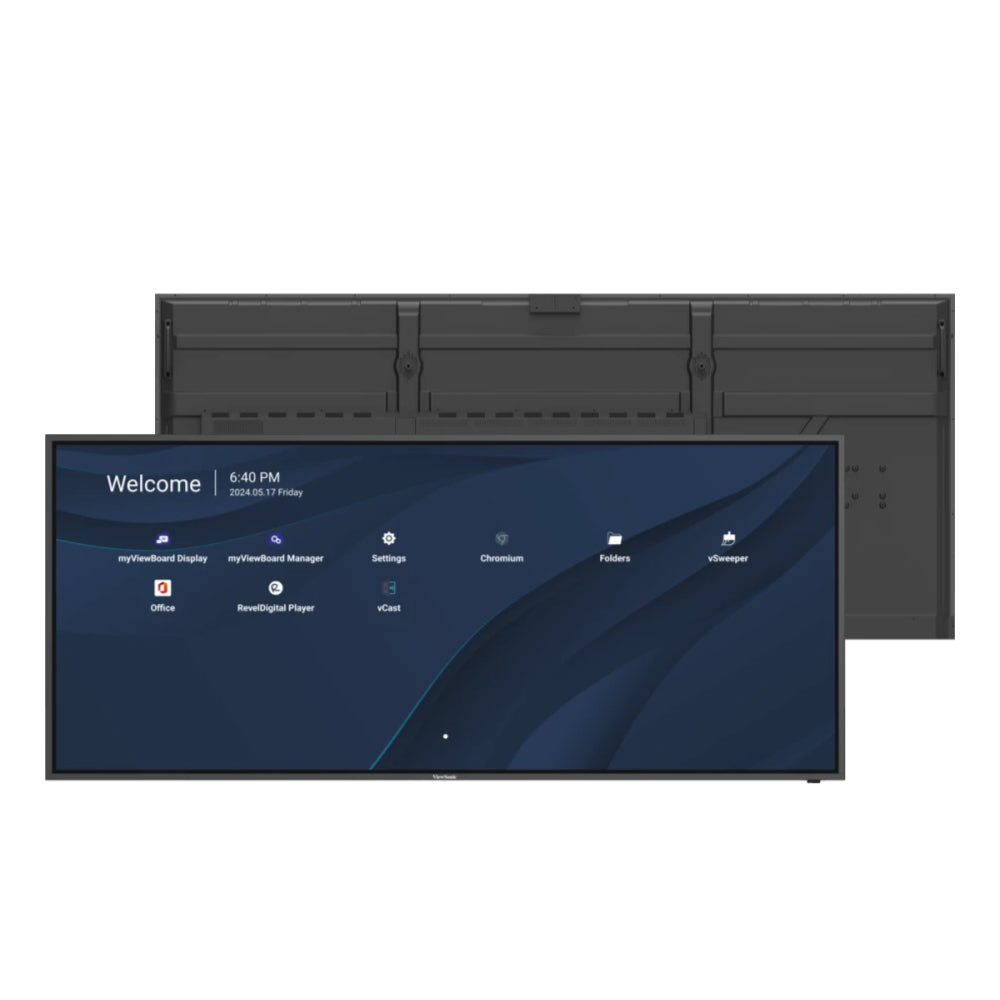

The CDE105UW is an ultrawide 105” digital display delivering stunning image performance with 5K resolution. Designed for both corporate and commercial use, it features a 21:9 aspect ratio, providing 33% more screen real estate than a comparable 16:9 display, making it ideal for Microsoft Teams Rooms and Front Row Mode. Powered by an octa-core SoC running Android 13, the CDE105UW enables seamless multitasking with a USB-C port that delivers 100W and multiple wireless content sharing options. It also supports daisy chaining and comes pre-installed with ViewSonic Manager, a centralized platform that streamlines corporate communication and enhances operational efficiency.
21:9 Ultrawide Display for Effective Communication
Expand the Possibilities
Explore a Wide Range of Applications
Corporate Campus Communication
Impactful Digital Signage
BYOD Meetings
Command and Control Room
Corporate Campus Communication
Immersive Visuals
Expand Your View
Offering 33% more screen space than a conventional 16:9 display of the same size, the 21:9 aspect ratio of the CDE105UW enables more immersive digital signage and enhances multitasking and collaboration, allowing users to view more content simultaneously during meetings.
Superior Detail, Flawless Visibility
Featuring 5K resolution, the CDE105UW delivers unparalleled image sharpness and detail for incredibly vivid visuals, complemented by a 178-degree viewing range that ensures flawless visibility from any perspective.
Minimalist Design, Maximum Impact
Featuring a slim 1.8 cm bezel, the CDE105UW harmonizes exceptional visual performance with a sleek, ultra-thin design, seamlessly elevating the aesthetic of any space.

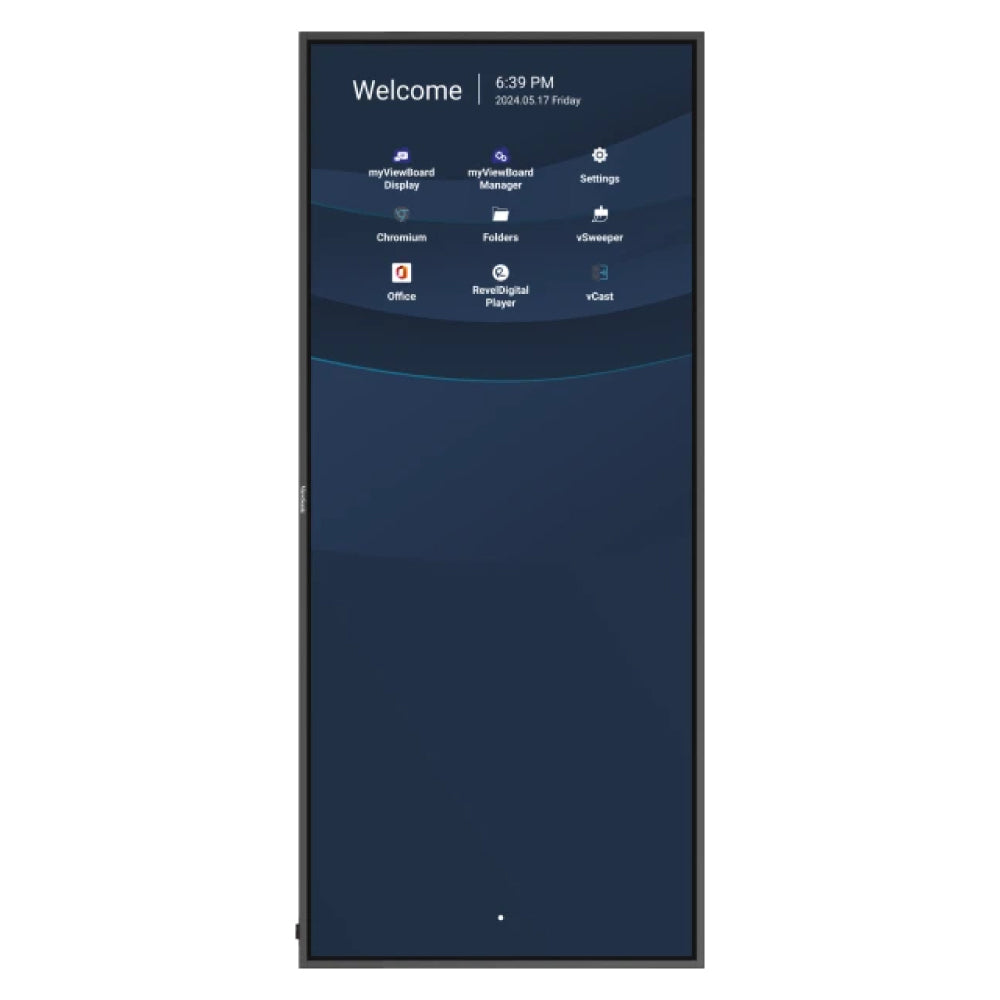

Landscape and Portrait Display Orientation
This commercial-grade display is ideal for digital signage. Featuring versatile orientation capabilities, it can easily switch between landscape and portrait modes, providing flexible display solutions for various settings.
Commercial-grade Display
Built for 24/7 operation to ensure uninterrupted communication, the CDE105UW features high brightness for exceptional visual clarity, along with HDMI 2.1 input and HDMI 2.0 output.
Unlock Enhanced Color and Contrast with HDR10
Bring every image to life with richer blacks, brighter whites, and vibrant colors for a truly immersive viewing experience. HDR10 enhances contrast and detail, making it ideal for presentations, videos, and graphics, delivering exceptional clarity and depth.
*The HDR10 effect is optimized for content displayed in full-screen mode.
Seamless Collaboration
Hybrid Meetings
Enhance inclusivity in hybrid meetings with an ultrawide display optimized for Microsoft Teams Front Rooms mode, simultaneously showcasing remote attendees, content, and chat—all on one screen.
Boost Productivity with Streamlined Connectivity
Simply plug in your laptop via the USB-C port to instantly benefit from power charging, fast data transfer, multimedia broadcasting, and Ethernet connectivity—all through a single cable.
Multi-device Wireless Screen Sharing
Enjoy instant, simultaneous wireless screen sharing of up to 6 devices through AirSync for effective communication and efficient collaboration during team meetings.
Fast and Reliable Wireless Connectivity
Upgrade the CDE105UW with an optional Wi-Fi module for seamless internet access. Additionally, the device can double as a hotspot to ensure a stable, wireless internet connection in meeting room, hallways, and commercial spaces.
Enhanced Productivity
Efficient Multitasking
Enhance meetings and collaborative sessions with split-screen mode, allowing for the display of two windows at once. Whether reviewing documents during brainstorming or sharing resources while tracking a video conference, make the most of the large screen for efficient multitasking.
*Split-screen mode supports the simultaneous display of two embedded apps or one embedded app and one source input.
Integrated Windows Experience for Maximized Productivity
Unlock new productivity possibilities and work in the familiar Windows OS by coupling the CDE105UW with an optional slot-in PC. Equipped with dual-band Wi-Fi, Bluetooth, a powerful Intel® Core™ CPU, abundant memory, and ample data storage, this module delivers solid computing performance to support even the most demanding applications.
Tailored to Your Needs
Customize your ultrawide display with ViewSonic’s range of accessories, including Microsoft Teams Rooms solutions, web cameras, and motorized carts to create the ideal setup for your needs.
TeamJoin™ 4K Video Bar System
UMB202
4K video bar with auto-framing and voice tracking for inclusive and collaborative meetings.
Conferencing Camera
VB-CAM-201
All-in-one 4K conference camera with a 121° super wide-lens and a powerful built-in microphone.
Centralized Device Control
Seamless Integration with Pro AV Control Systems
ViewSonic commercial displays are Crestron Connected® certified and compatible with the Crestron XiO Cloud® service, offer a Q-SYS Verified Plugin for integration into the Q-SYS Ecosystem, and support AMX. These integrations facilitate always-on operation and full remote control of lighting, audio, displays, and other AV components, whether on-site or off-site.
Powerful Remote Management
The built-in ViewSonic® Manager software empowers IT teams and administrators to centrally manage one or multiple devices. It enables automatic on/off scheduling to reduce power consumption, multimedia message broadcasting, quick troubleshooting, and facilitates issue resolution. Additionally, it allows for remote optimization of device configurations based on real-time usage reports.*
*An optional ViewSonic® Manager Advanced subscription is required for certain functionalities.
Energy-efficient Solution
The CDE105UW holds the prestigious EPEAT Silver and Energy Star certification, recognizing its adherence to rigorous energy consumption, supply chain carbon emissions, and end-of-life management standards.
Dimensions & I/O Ports
- 01. Speaker
- 02. AC Power
- 03. WiFi Slot
- 04. SPDIF
- 05. LAN
- 06. RS232
- 07. USB-A 2.0
- 08. USB-A 3.2 Gen 1
- 09. USB-A 3.2 Gen 1
- 10. OPS Slot
- 11. HDMI 1
- 12. DP
- 13. Audio In
- 14. Audio Out
- 15. USB-A 3.2 Gen 1 *2
- 16. HDMI Out
- 17. HDMI 2
- 18. HDMI 3
- 19. HDMI 4
- 20. USB-C
- 21. Power Switch
- 22. VESA® Wall Mount (1000x600mm)
Display
Panel Size
105"
Type/ Tech
TFT LCD Module with DLED Backlight, VA
Display Area (mm)
2449.92(H) x 1033.56(V) (105" diagonal)
Native Resolution
5120 x 2160
Aspect Ratio
21:9
Colors
1.07G colors (8bits+ 2bits FRC)
Brightness
500nits (typ.)
Contrast Ratio
5000:1 (typ.)
Response Time
<14ms
Viewing Angles
H = 178, V = 178 (Typ.)
Backlight Life
50,000 hrs (typ.)
Surface Treatment
Panel Hard Coating 3H
Bezel
18/18/18/18 mm
Orientation
Landscape & Portrait
Platform
Processor
Octa-Core CPU (A76*4 + A55*4)
RAM
DDR4 8GB
Storage
128GB (eMMC)
Input
HDMI
REAR x 4 (1x HDMI 2.1 5K@60Hz/ 3x HDMI 2.1 4K@60Hz)
DisplayPort
1
Audio
1 (3.5mm phone jack)
RS-232
1
OPS Slot
1 (OPS Slot 80pin)
WiFi Slot
1 (Module Slot)
Output
HDMI
1
Audio
1
SPDIF
1
Lan
RJ45
1 in 1 out (Android & PC 10M/100M/1000Mbps)
USB
Type A
- REAR x 1 (USB2.0 support OTG)
- REAR x 2 (USB 3.2 Gen 1)
- TOP x 2 (USB3.2 Gen 1)
- support Smart USB
Type C
REAR x1 (PD100W+ DP1.2 + USB2.0, 100M ethernet)
support smart USB (dynamic PD: W/OPS 65W, W/O OPS 100W)
Speakers
20W x 2 + 20W x 1 (Subwoofer)
Compatibility
HDMI
- HDMI 1: 5120x2160 @60Hz (YUV444)
- 5120x2160 @30Hz (YUV420)
- HDMI 2/3/4: 3840x2160 @60Hz
DisplayPort
5120 x 2160
Embedded OS
Android 13
Bundled Software
Wireless Presentation
myViewBoard Display, vCast, AirSync*
*myViewBoard Display will be replaced by AirSync in Q1 2025.
Device Management
ViewSonic® Manager
ViewSonic Launcher
Yes
Revel Digital
Yes
Power
Voltage
100-240VAC +/- 10% Wide Range
Consumption
405W with Energy Star
Ergonomics
Wall Mount (VESA® )
1000 x 600 mm
Operating Conditions
Temperature (º C)
0°C to 40°C
Humidity
20% ~ 80% RH non-condensing
Operating Hours
24/7
Dimensions (W X H X D)
Physical (inch / mm)
98.03 x 42.57 x 3.03 in / 2489.9 x 1081.4 x 77 mm
Packaging (inch / mm)
105.04 x 48.54 x 11.02 in/2668 x 1233 x 280 mm
Weight
Net (lb / kg)
116.96 lb/ 53.05 kg
Gross (lb / kg)
163.14 lb/74 kg
Regulations
cTUVus,FCC/ICES003,CE/EMC,CB/LVD,EAC,UkrSEPRO,UKCA,UK-EEL,LBL,FF,ErP-EEL,WEEE,Green BOM,RoHS DoC,ErP-Eco,REACH, EPEAT
Energy Star
ES 8.0
Package Contents
1. 3m power cord by ship area
2. Type C cable 1.8m(USB-IF certified)
3. Remote control with AAA battery x2
4. Quick Start Guide
5. RS232 adapter
6. Clamp x 5
7. Camera Plate x 2(1 for VB-CAM-201, 1 for UMB202)
8. Screw x 8 (camera 2+2, wall mount 4)
9. HDMI cable 3m(HDMI LA certified)
10. Compliance statement
