Designed for Perfect Screen Mapping

Featuring a versatile built-in stand, easily extend your 16:10 laptop screen with the TD1617A-2K display to enhance collaboration and workflow with unified screen space.

Maximize Productivity with Enhanced View

Featuring a 16:10 screen ratio and WQXGA/QHD+ resolution (2560x1600), the TD1617A-2K enhances multitasking and productivity with its extra vertical screen space and sets a new trend in display technology.

16:10, WQXGA/QHD+

Advanced Touch Capabilities and Screen Performance

Experience intuitive screen control with an advanced capacitive touchscreen. Easily tap, pinch, and swipe on a responsive display that delivers exceptional performance and stunning images.

Note:

• Touch feedback control not applicable to iOS & iPadOS devices.
• Download vTouch software to enable touch feedback on MacOS.
• Ensure your mobile device's connectivity supports USB touch signal transmission for the monitor's touch feedback control.
• Compatible with standard capacitive styluses (not included).​

OVERVIEW

Smooth Visuals With 165Hz Refresh Rate​

With a fast 165Hz refresh rate, you can experience a truly fluid visual display. This results in improved viewing clarity, reduced screen stutter during fast-moving action scenes, and benefits work-related tasks and gaming experience, reducing eye strain and increasing productivity.

165Hz Refresh Rate​

Seamless Connectivity from Work to Play​

Featuring USB-C and HDMI connectivity, the TD1617A-2K integrates seamlessly into any setup. Extend your screen with laptops and mobile devices, or connect consoles like the Nintendo Switch for smooth gameplay wherever you are.

Note:
1. Smart devices must support DisplayPort 1.2 Alt Mode and Power Delivery via USB-C.​
2. iPhone or iPad models with a Lightning connector require a Lightning-to-HDMI adapter and the included HDMI-to-mini-HDMI cable. A separate power source (such as a wall outlet or power bank) is also required.

Hassle-free Connectivity ​

Dual USB-C ports for all your connectivity needs, enabling smooth audio, video, and touch data transfer, as well as bi-directional power charging through a single cable.

USB-C One Cable Solution

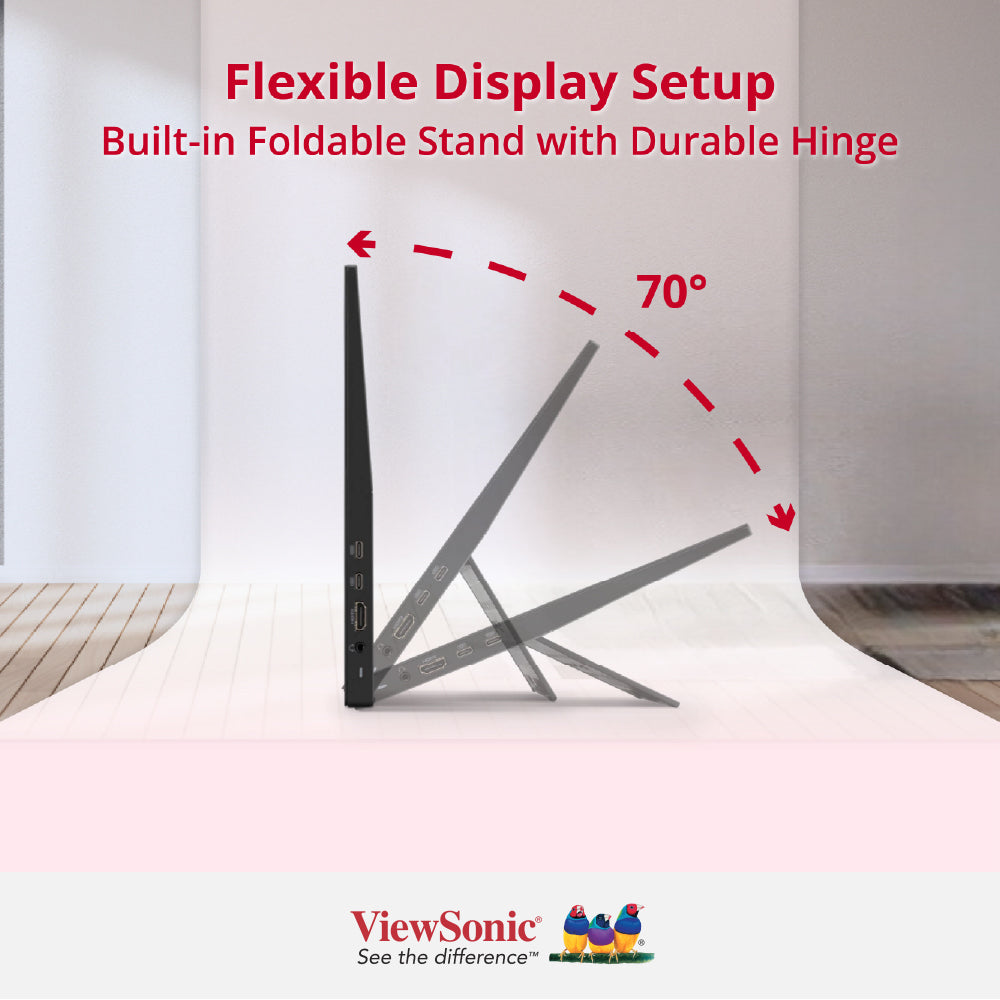

Flexible Display Setup​

Work in your preferred setup – the built-in foldable stand with a durable hinge, tilts up to 70 degrees for easy adjustment of viewing angles.

Built-in Foldable Stand with Durable Hinge​

Effortless Portability​

Designed to be thin and lightweight, this compact monitor can be easily carried around wherever you go without adding extra burden.

Thin & Lightweight, 7.07 mm, 1.1 KG​

Accurate Color for Creation and Entertainment​ ​​

With 100% sRGB color coverage, the TD1617A-2K delivers vivid, true-to-life visuals that meet the demands of modern workspaces. Ideal for content creation, detailed office tasks, and immersive entertainment where color clarity matters.​

100% sRGB Color Coverage​​

Eco-friendly, Biodegradable Packaging​​

Designed with sustainability in mind, the packaging is crafted from 100% recyclable, FSC-certified materials and uses water-based ink for prints. Inside, the monitor is wrapped in a biodegradable protective sleeve, and cables are secured with a reusable Velcro strap, minimizing the use of single-use materials.​

FSC-Certified Packaging​​

Overview

• USB Type C *2
• HDMI
• Audio Out
• Joystick Key

Display Size (in.)

16

Viewable Area (in.)

16

Panel Type

IPS Technology

Resolution

2560 x 1600

Resolution Type

WQXGA (Wide QXGA)

Static Contrast Ratio

1,200:1 (typ)

Dynamic Contrast Ratio

50M:1

Light Source

LED

Brightness

300 cd/m² (typ)

Colors

1064.3M

Color Space Support

10 bit (8 bit + FRC)

Aspect Ratio

16:10

Response Time (Typical GTG)

3ms

Response Time (GTG w/OD)

2.994ms

Viewing Angles

178º horizontal, 178º vertical

Backlight Life (Hours)

15000 Hrs (Min)

Curvature

Flat

Refresh Rate (Hz)

165

Low Blue Light

Software solution

Color Gamut

NTSC: 76% size (Typ)
sRGB: 107% size / 100% coverage (Typ)

Pixel Size

0.135 mm (H) x 0.135 mm (V)

Touch Screen

Projected Capacitive, 10-point multi-touch

Surface Treatment

Glossy, Hard Coating (≧6H)

Cover Glass Thickness

0.663mm

PC Resolution (max)

2560x1600

Mac® Resolution (max)

2560x1600

PC Operating System

Windows 10/11 certified; macOS tested

Mac® Resolution (min)

2560x1600

USB 3.2 Type C DisplayPort Alt mode only

2 (60W power charger)

3.5mm Audio Out

1

HDMI 1.4

1

Power in

USB Type C (with video & data)

Internal Speakers

0.8Watts x2

Eco Mode (Conserve)

7.5W

Eco Mode (optimized)

8.5W

Consumption (typical)

9.3W

Consumption (max)

10.3W

Voltage

DC 5V/9V/12V/15V/20V

Stand-by

0.5W

Power Supply

External (Optional)

Physical Controls

Up, Right, Down, Left, Power

On Screen Display

Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu

Temperature

32°F to 104°F (0°C to 40°C)

Humidity (non-condensing)

20% to 90%

Frequency Horizontal

HDMI (v1.4): 15 ~ 200KHz, Type C: 30 ~ 510KHz

Frequency Vertical

HDMI (v1.4): 48 ~ 120Hz, Type C: 48 ~ 165Hz

Digital Sync

TMDS - HDMI (v1.4), Micro-Packet - Type C

Tilt (Forward/Back)

20º / 60º

Net (lbs)

1.8

Net Without Stand (lbs)

1.8

Gross (lbs)

3.5

Net (kg)

0.8

Net Without Stand (kg)

0.8

Gross (kg)

1.6

Packaging (in.)

17.6 x 12.1 x 2.9

Physical (in.)

14.18 x 9.41 x 0.63

Physical Without Stand (in.)

14.18 x 9.41 x 0.63

Packaging (mm)

448 x 307 x 74

Physical (mm)

360.26 x 239.09 x 16

Physical Without Stand (mm)

360.26 x 239.09 x 16

Package Content

• TD1617A-2K x1,
• USB Type-C Cable (Male-Male) x1,
• USB Type-C to Type-A 3.2 Gen1 Cable (Male-Male) x1,
• Quick Start Guide x1,
• Sleeve case x1,
• Clean cloth x1,
• Passive touch pen x1

Recycle/Disposal

Please dispose of in accordance with local, state or federal laws.

Warranty

3 Years Warranty
