High Brightness for Business & Education Environments​

Thanks to 4,500 ANSI Lumens brightness, you're guaranteed clear visuals of vibrancy, which areperfectly suitable for spaces with a lot of ambient light.

4,500 ANSI Lumens

Ultra-Large Screen with Lower Cost-per-inch​​

The projector allows for an up-to-300” image size, which is much larger and easier to install thancommercial displays.

Up to 300"

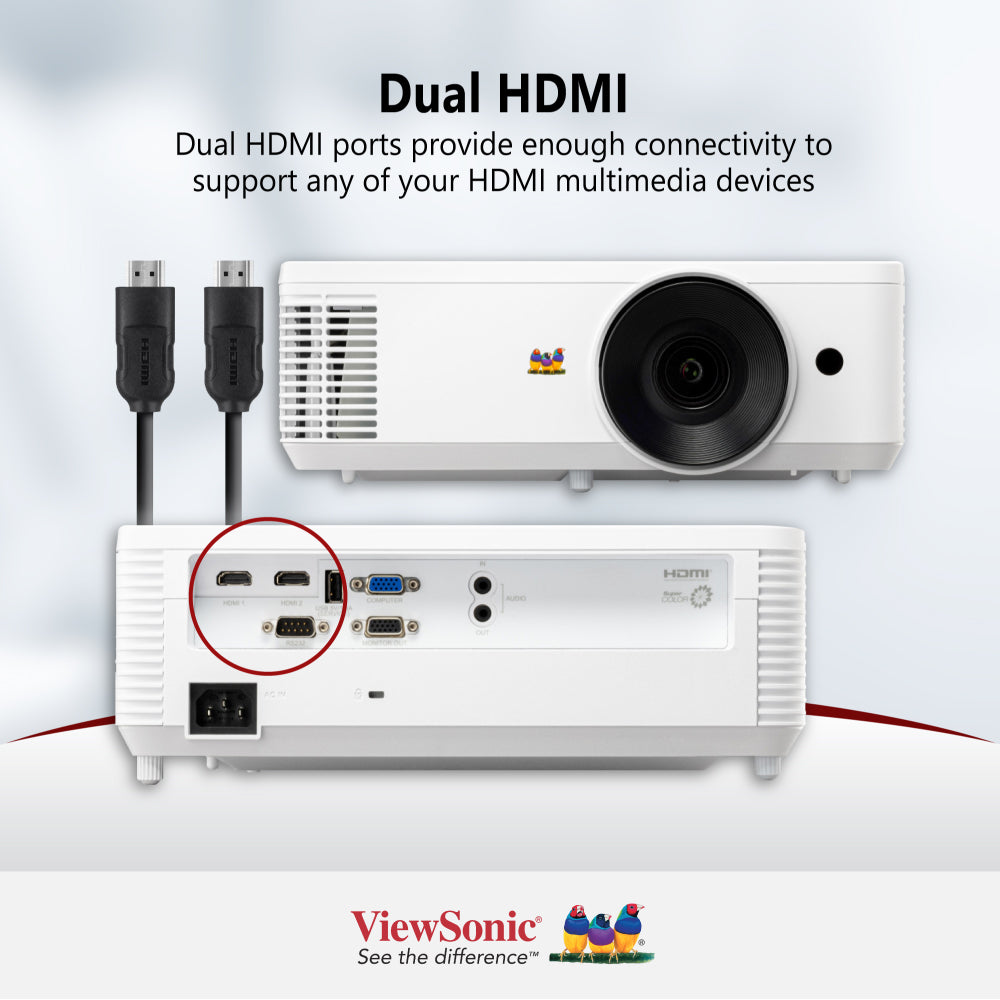

Easy and Flexible Connection​

The dual HDMI ports offer ample connectivity to accommodate all your HDMI-enabled multimedia devices.You no longer have to unplug your existing device to switch to a new one. Simply use the on-screendisplay to select and change the input source.​

Dual HDMI Ports

Present the Best with Vibrant Colors

Impress any audience with ViewSonic’s exclusive color technology and elevate your presentation with a true-to-life color experience.

A Simpler Way to Update Projector Software​

Skip trips to the service center by keeping software up to date easily and onsite via USB cableconnection with your laptop.​​​ Learn more: https://youtu.be/irlhJLpDHas ​​​*The latest projector softwareupdate can be found in the download section at the bottom of the page when available.​

USB Type A Power Supply​

A built-in 5V/1.5A USB power output can be used to supply power to HDMI wireless dongles, eliminatingthe need for separate power adapters when streaming your multimedia content.

Dimensions & I/O Ports

1. Adjustment Foot
2. Lens
3. Front IR
4. HDMI 1
5. HDMI 2
6. USB-A(5V/1.5A, Service)

7. Computer In
8. Audio In
9. AC In
10. R232
11. Kensingtion Lock
12. Monitor Out

13. Audio Out
14. Focus Ring
15. Zoom Ring
16. LED Indicator
17. Keypad

Projection System

0.55" SVGA

Native Resolution

800x600

Brightness

4500 (ANSI Lumens)

Contrast Ratio with SuperEco Mode

12500:1

Display Color

1.07 Billion Colors

Light Source Type

240W UHP Lamp

Light Source Life (hours) with Normal Mode

4000

Light Source Life (hours) with SuperEco Mode

12000

Lens

F=2.42-2.53, f=21.85-24.01mm

Projection Offset

115%+/-5%

Throw Ratio

1.94-2.16

Optical Zoom

1.1x

Digital Zoom

0.8x-2.0x

Image Size

30"-300"

Throw Distance

1.18m-13.17m (100"@3.94m)

Keystone

+/- 40° (V)

Audible Noise (Normal)

34dB

Audible Noise (Eco)

25dB

Input Lag

33.2ms

Resolution Support

VGA(640 x 480) to FullHD(1920 x 1080)

HDTV Compatibility

480i, 480p, 576i, 576p, 720p, 1080i, 1080p

Video Compatibility

NTSC, PAL, SECAM

Horizontal Frequency

15K-102KHz

Vertical Scan Rate

23-120Hz

Computer in (share with component)

1

HDMI

2 (HDMI 1.4/ HDCP 1.4)

Audio-in (3.5mm)

1

Monitor out

1

Audio-out (3.5mm)

1

Speaker

3W

USB Type A (Power)

1 (5V/1.5A)

RS232 (DB 9-pin male)

1

USB Type A (Services)

1 (share with USB A Output)

Power Supply Voltage

100-240V+/- 10%, 50/60Hz (AC in)

Power Consumption

Normal: 295W
Standby: <0.5W

Operating Temperature

0~40℃

Carton

Brown

Net Weight

2.70kg

Gross Weight

3.80Kg

Dimensions (WxDxH) with Adjustment Foot

309x234x115mm

Packing Dimensions

400x337x168mm

OSD Language

English, German, French, Swedish, Spanish, Portuguese, Polish, Dutch, T. Chinese, S.Chinese, Finnish, Korean, Russian, Hungarian, Czech, Arabic, Thai, Turkish, Vietnamese, Indonesian, Greek, Italian, Total 22 languages

User Guide Language

English, S-Chinese, T-Chinese, Finnish,French,German,Italian,Japanese,Korean,Polish,Portuguese,Russian,Spanish,Swedish,Turkish, Total 15 languages

Power Cord

1

VGA Cable

1

Lamp/Light Source

RLC-128

Air Filter

RSPL
