OVERVIEW

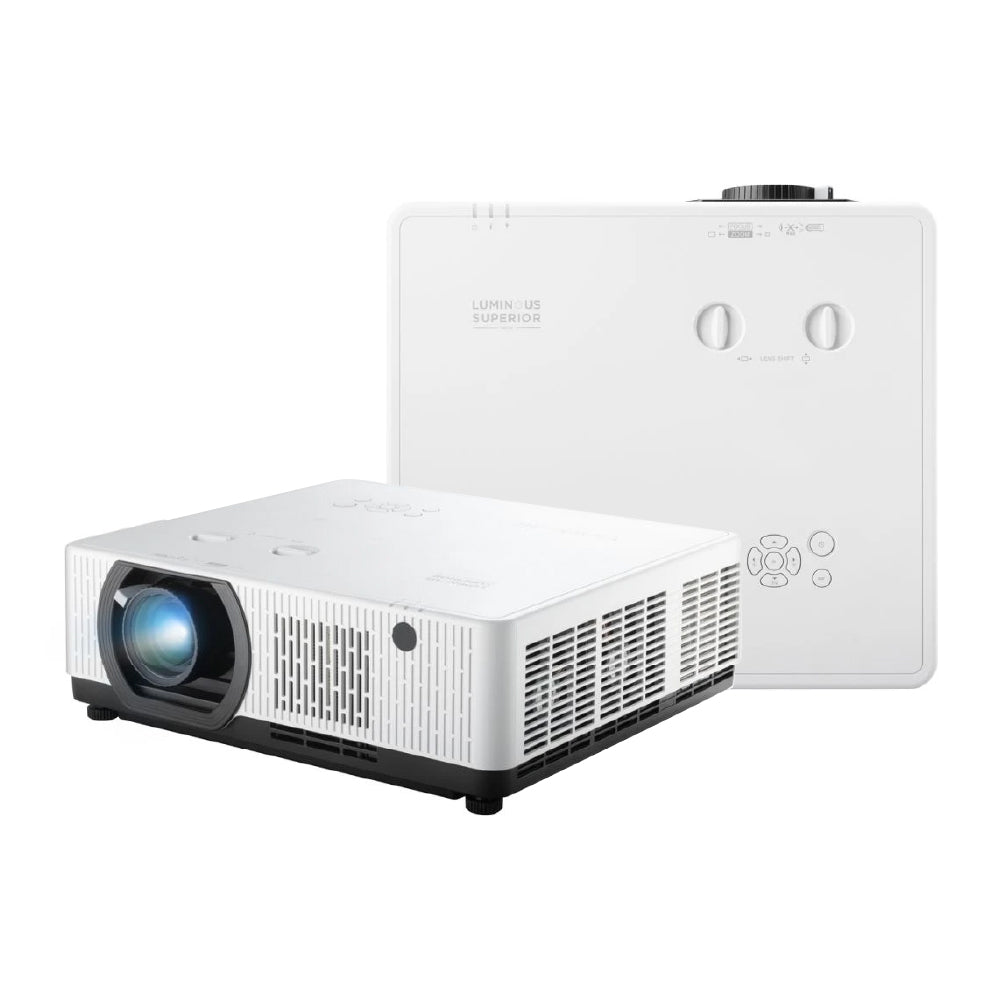

The LSC801WU is a lamp-free, high-brightness projector designed for commercial, educational, and public spaces. Utilizing 2nd generation laser phosphor technology, this projector delivers 8,000 ANSI Lumens of brightness for up to 30,000 hours and can project an ultra-large screen up to 300” in WUXGA resolution. Ideal for modern workplaces, its 21:9 aspect ratio is optimized for Microsoft Teams Rooms applications, enhancing collaborative environments. Equipped with features like H/V lens shift, 1.6x optical zoom, H/V keystone correction, and 360° projection capabilities, the LSC801WU offers flexible setup possibilities. Additionally, its comprehensive LAN control ensures seamless integration into existing device management networks.

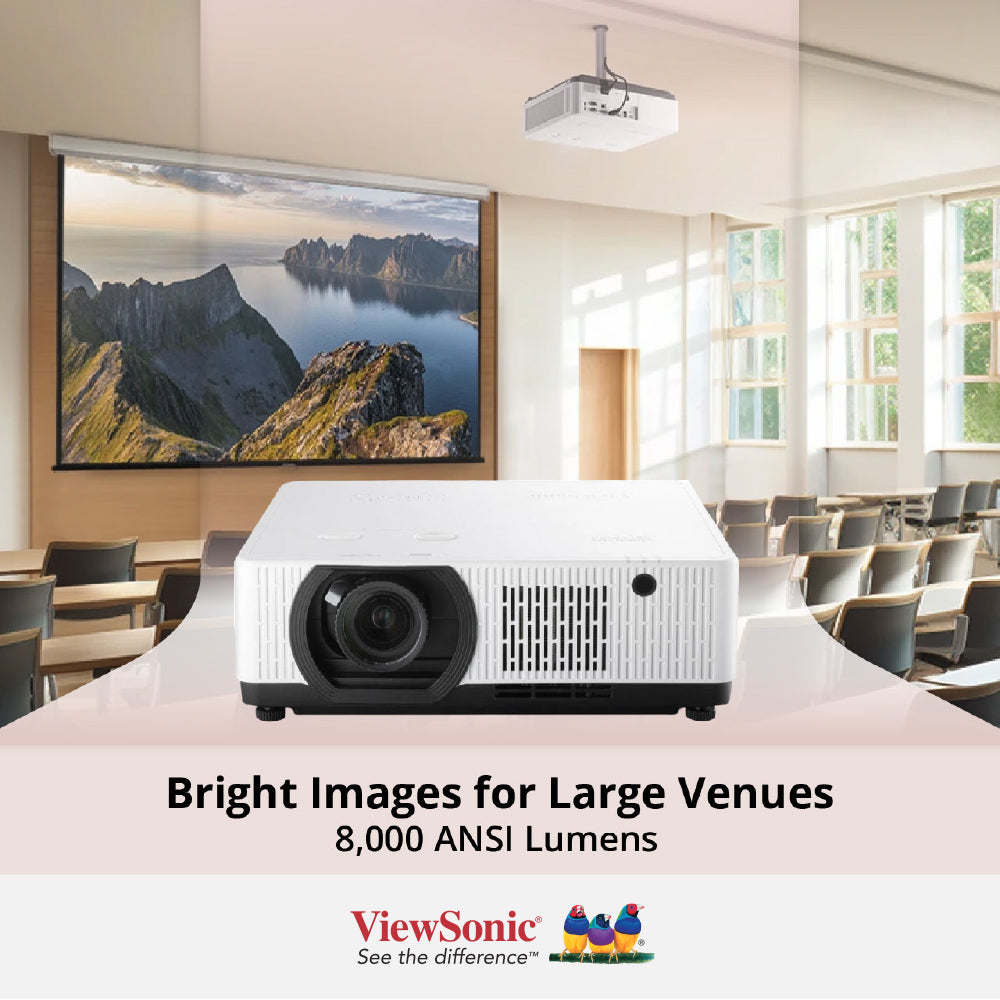

Bright Images for Large Venues
Delivering 8,000 ANSI Lumens, the projector provides vibrant and sharp projection in all lighting conditions, making it ideal for boardrooms, lecture halls, galleries, simulation experience venues, and other expansive spaces.
8,000 ANSI Lumens

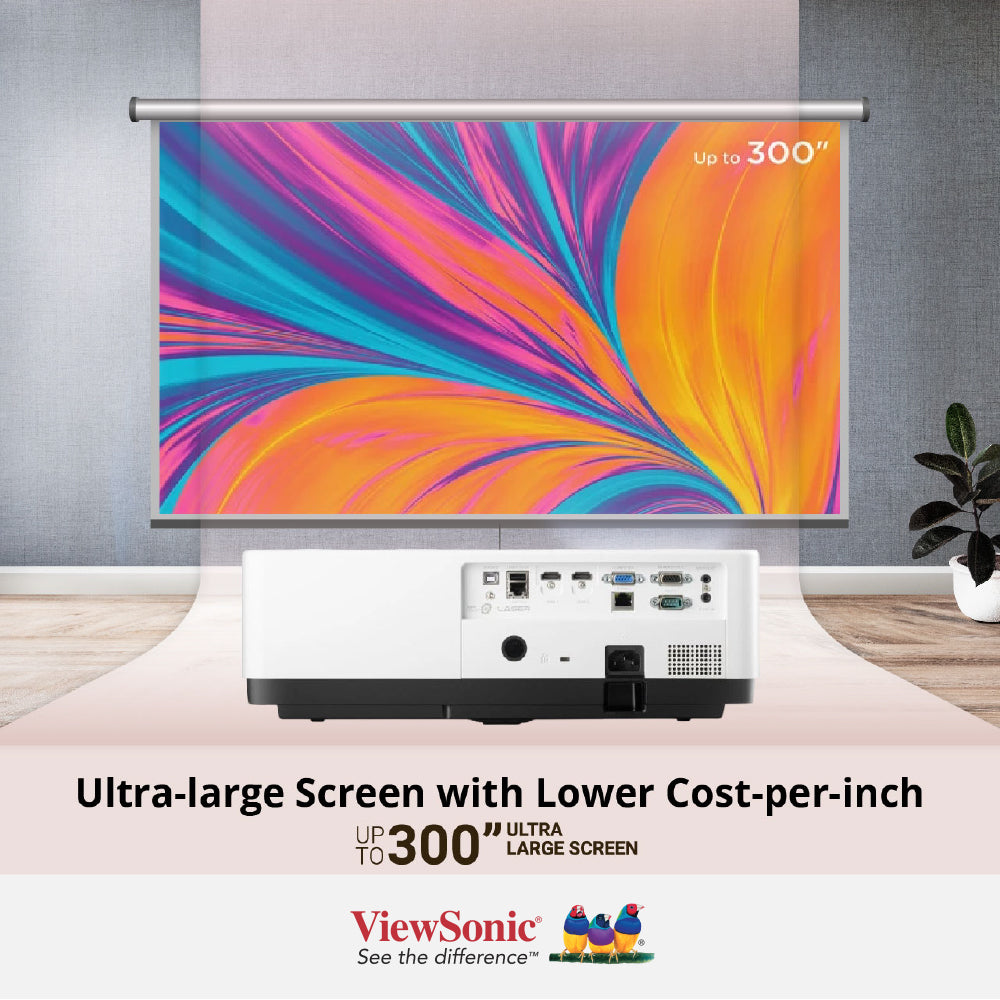

Ultra-large Screen with Lower Cost-per-inch
This easy-to-install projector allows for an image size of up to 300”, offering a lower cost-per-inch compared to other types of commercial displays.
Up to 300”

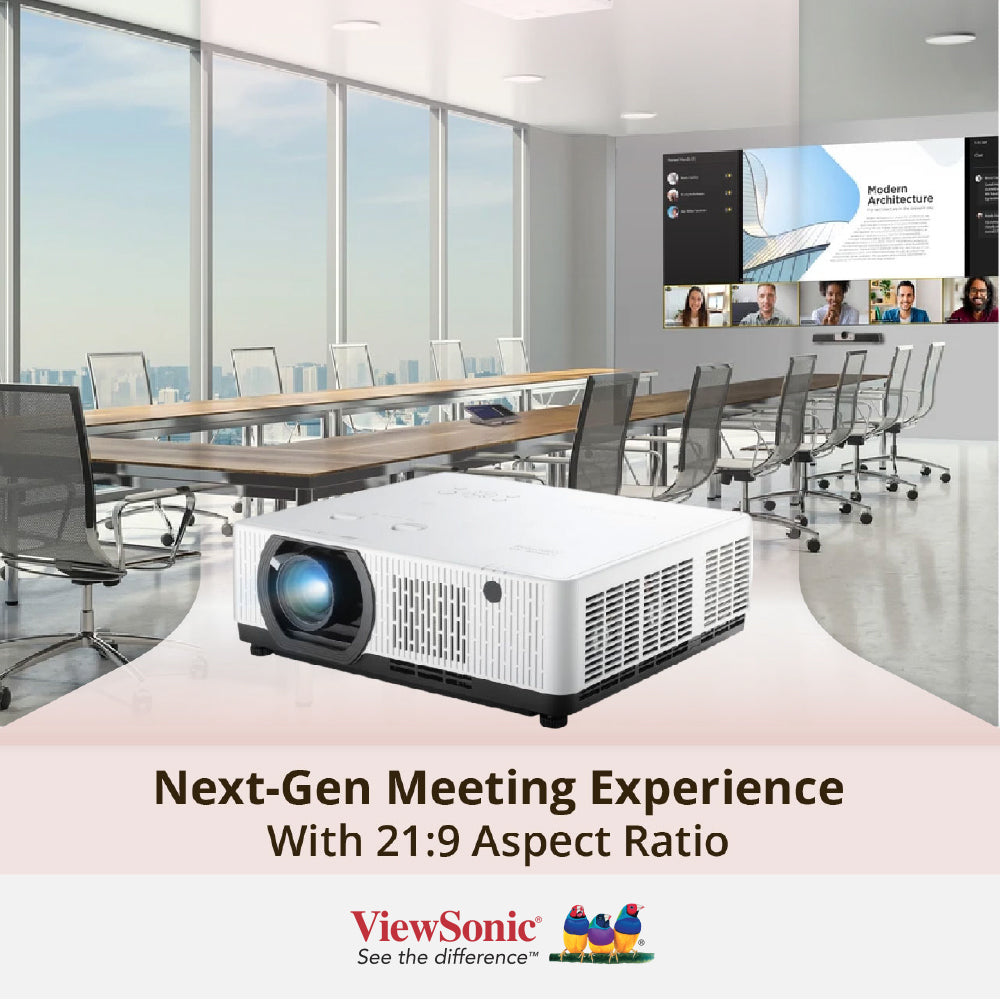

Next-Gen Meeting Experience with 21:9 Aspect Ratio
The projector supports a 21:9 aspect ratio, tailored for Microsoft Teams Rooms (MTR) in front-row mode. This widescreen format enhances meeting experiences by simultaneously displaying the presentation, chat box, hands-up notifications, and participant video feeds, fostering a highly engaging and collaborative environment.
21:9 for MTR

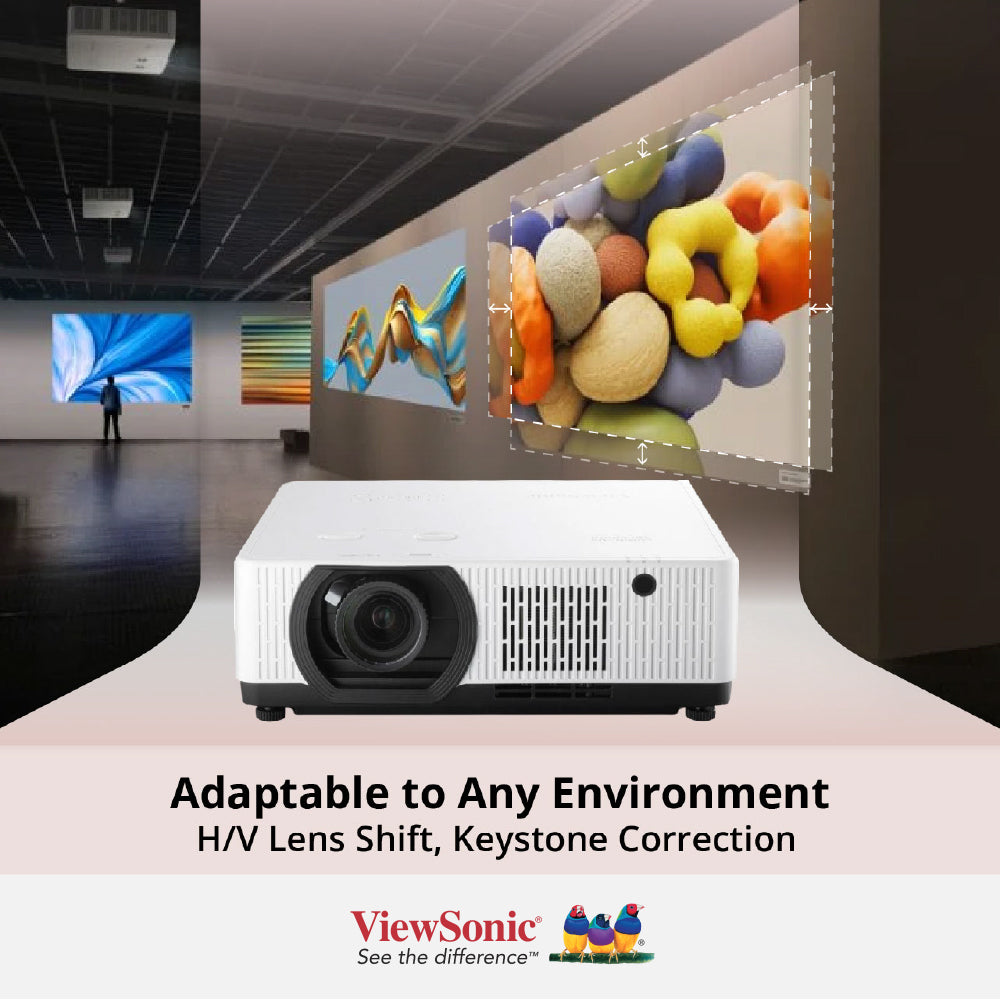

Adaptable to Any Environment
Featuring tool-free lens shift control knobs, 1.6x optical zoom, H/V keystone correction, and 4-corner adjustment capabilities, this projector allows image adjustments without relocation, ensuring it fits any environment.
H/V Lens Shift, Keystone Correction, 1.6x Optical Zoom
2nd Generation Laser Phosphor Technology
The projector adopts the 2nd generation laser phosphor technology. In addition to inheriting excellent color performance, lamp-free design, and instant power on/off from the previous generation, technology on the new generation improves around 20% of brightness, better heat-resistance, and a smaller module design, making the images consistent in ambient settings as well as increased reliability with a more compact size for extended use in various scenarios.
Up to 30,000-hour Lifespan

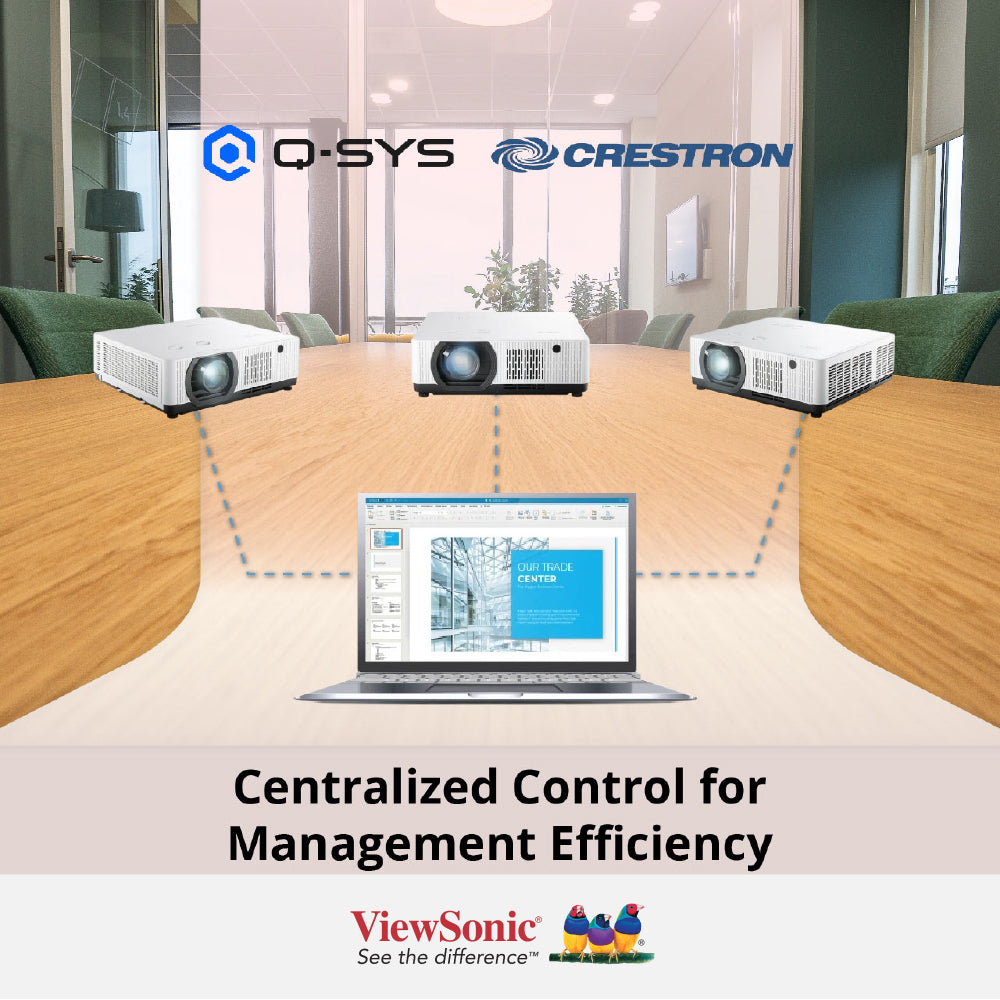

Centralized Control for Management Efficiency
The LSC801WU is certified for Crestron and Q-SYS, and compatible with AMX, PJ Link, ATEN, and Extron systems, allowing for centralized device management for better operational efficiency.
Comprehensive LAN Control
Dimensions & I/O Ports
- 1. Front IR
- 2. Service
- 3. USB-A (5V/2A)
- 4. HDMI x2
- 5. Computer
- 6. Monitor Out
- 7. RS232
- 8. Audio Out
- 9. Audio In
- 10. RJ45
- 11. Rear IR
- 12. HDBaseT
- 13. AC In
- 14. LED Indicator
- 15. Keypad
- 16. Focus Ring
- 17. Zoom Ring
- 18. Lens Shift Control Knob x2
- 19. Power Button
Specifications
Projection System
3LCD (3x0.64" with MLA)
Native Resolution
1920x1200
Brightness
8000 (ANSI Lumens)
Brightness (Center Lumens)
8500
Contrast Ratio
3000000:1
Display Color
1.07 Billion Colors
Light Source Type
Laser Phosphor
Light Source Life (hours) with Normal Mode
20000
Light Source Life (hours) with SuperEco Mode
30000 (Eco)
Lens
F=1.5-2.08, f=17.2-27.7mm
Projection Offset
0%+/-5%
Throw Ratio
1.2-2.0
Optical Zoom
1.6X
Digital Zoom
1.0x-4.0x
Image Size
30"-300"
Throw Distance
0.78-12.99m (100"@2.58m)
Keystone
H:+/-25° , V:+/-30°
Auto Keystone
+/- 30° (V)
Lens Shift V. Range
+60%, 0%
Lens Shift H. Range
+29%, -29%
Audible Noise (Normal)
37dB
Audible Noise (Eco)
27dB
Input Lag
60ms
Resolution Support
VGA(640 x 480) to 4K(3840 x 2160)
HDTV Compatibility
480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
Horizontal Frequency
15K-100KHz
Vertical Scan Rate
23-85Hz
Input
Computer in (share with component)
1
HDMI
2 (HDMI 1.4, HDCP 1.4)
Audio-in (3.5mm)
1
USB Type A
1 (5V/2A)
HDBaseT
1
Output
Monitor out
1
Audio-out (3.5mm)
1
Speaker
16W
USB Type A (Power)
1 (USB2.0 - 5V/2A, share with USB A Input)
Control
RS232 (DB 9-pin male)
1
RJ45 (LAN control)
1
USB Type B (Services)
1
Others
Power Supply Voltage
100-240V+/- 10%, 50/60Hz (AC in)
Power Consumption
Normal: 385W Standby: <0.5W
Operating Temperature
0~40℃
Carton
Brown
Net Weight
7.9kg (17.42 lbs)
Gross Weight
10.93kg (24.1 lbs)
Dimensions (WxDxH) with Adjustment Foot
405x358x137mm (15.9x14.1x5.4 in)
Packing Dimensions
510x498x260mm (20.1x19.6x10.2 in)
OSD Language
English, German, French, Italian, Spanish, Polish, Swedish, Dutch ,Portugese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak, Vietnamese,Thai, Farsi, total 25 languages
User Guide Language
English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages
Standard Accessory
Power Cord
1
Remote Control
1
QSG
Yes
Air Filter
Yes
Warranty Card
Yes (CN Only)
Optional Accessory
Air Filter
RSPL
Wall/Ceiling Mount
PJ-WMK-007
General
Warranty
3 Years Warranty
